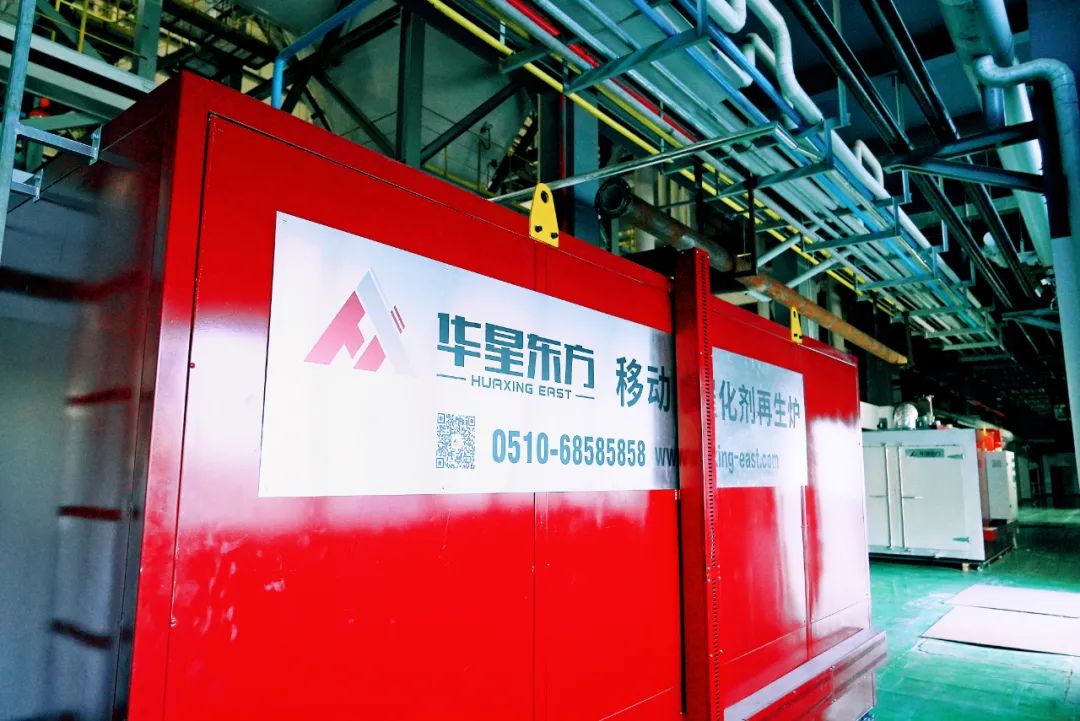

江蘇華星東方催化劑離線再生服務自南京江北垃圾焚燒發電項目上線以來已有六年時間，期間我們本著服務匠心的精神不斷對催化劑離線再生技術進行深耕及完善，研發了可移動式催化劑離線再生裝置和上門再生服務。在這一領域中，我們的技術實力已得到了市場的充分認可。
The catalyst offline regeneration solution from Jiangsu Huaxing-east has run 6 years since the launch of Nanjing Jiangbei waste incineration plant. During this period, Huaxing has continuously deepened and improved the catalyst offline regeneration techniques powered by service ingenuity, and developed mobile catalyst offline regeneration equipment and on-site regeneration service. In this field, Huaxing's technical strength has been fully recognized by the market.

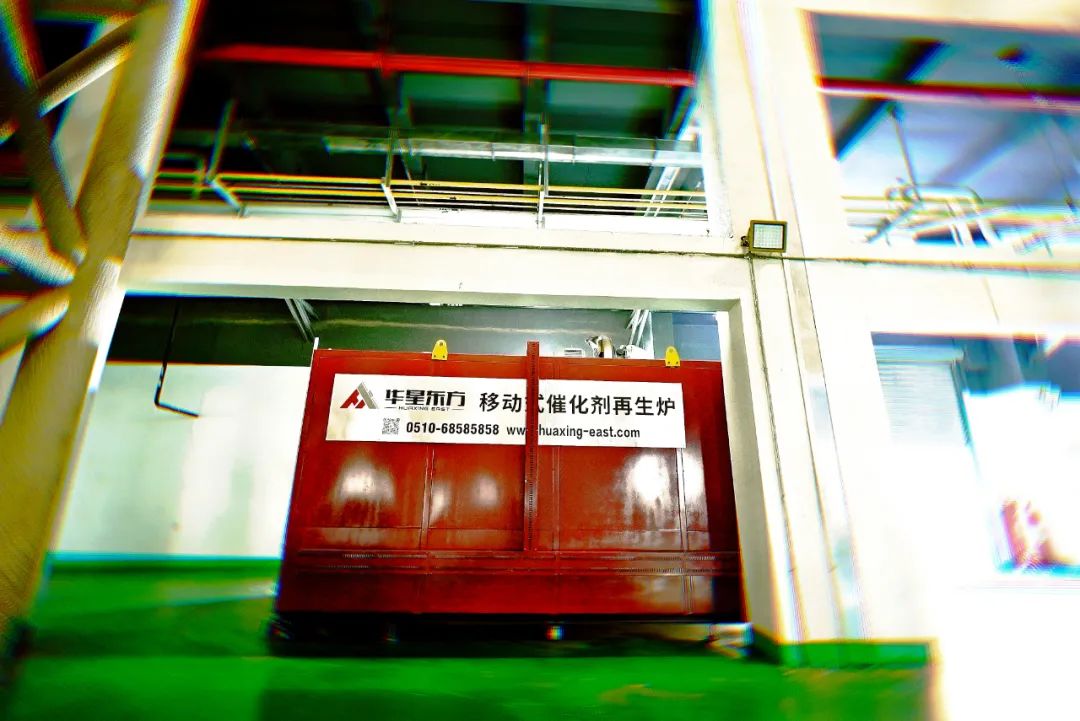

催化劑離線再生是解決因硫酸氫銨（ABS）造成中毒的催化劑可繼續再生使用的技術。在臺州旺能生活垃圾焚燒發電項目催化劑離線再生過程中，現場共設置2臺4模塊移動式再生爐，2臺同時運行一次可再生8個模塊。將原更換下的催化劑利用叉車搬運至催化劑離線再生爐中，根據催化劑中毒嚴重程度可設置再生時長，測試排氣口SO2及NH3濃度，判定再生是否結束。在催化劑離線再生過程中我們同時為客戶提供備用催化劑以及停爐檢修的服務，方便客戶可以快速起爐。（江蘇華星東方1x8模塊催化劑離線再生爐正在研發當中，不日便可上線投用。）
Catalyst offline regeneration is a technique to regenerate and reuse the catalyst contaminated by ammonia bisulfate (ABS).In the catalyst offline regeneration process of Taizhou Wangneng waste incineration plant, 2 of 4-module mobile regeneration devices, which can simultaneously process 8 modules, were set up on-site. The contaminated catalyst is transported to the catalyst offline regeneration furnace by forklift. The regeneration time can be set according to the severity of contamination. After the regeneration process, the concentration of SO2 and NH3 at the exhaust outlet will be tested as the proof of regeneration completion. In the process of offline catalyst regeneration, Huaxing also provides customers spare catalyst and shutdown maintenance, so that customers can start the boiler quickly. ( Jiangsu Huaxing-east's 8-module offline regeneration furnace is under development and will be put into operation shortly )
催化劑形式：波紋板式催化劑
Catalyst type: corrugated plate catalyst
催化劑模塊尺寸：1839x925x1230
Catalyst module size: 1839x925x1230 mm
最高承受溫度：420℃
Maximum temperature: 420 ℃

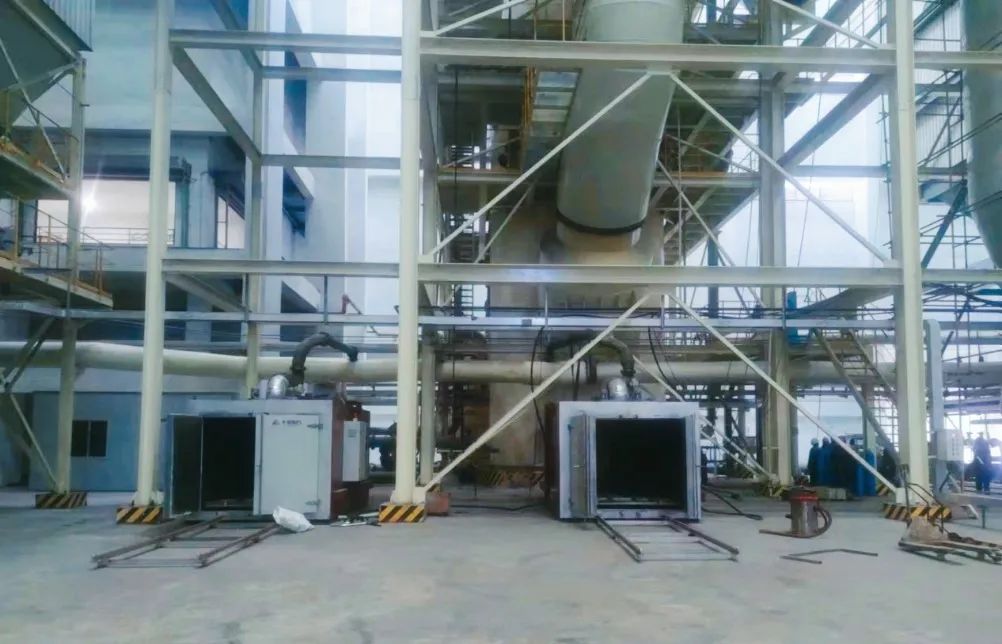

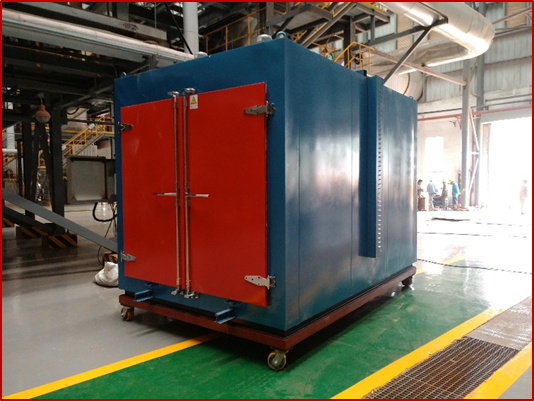

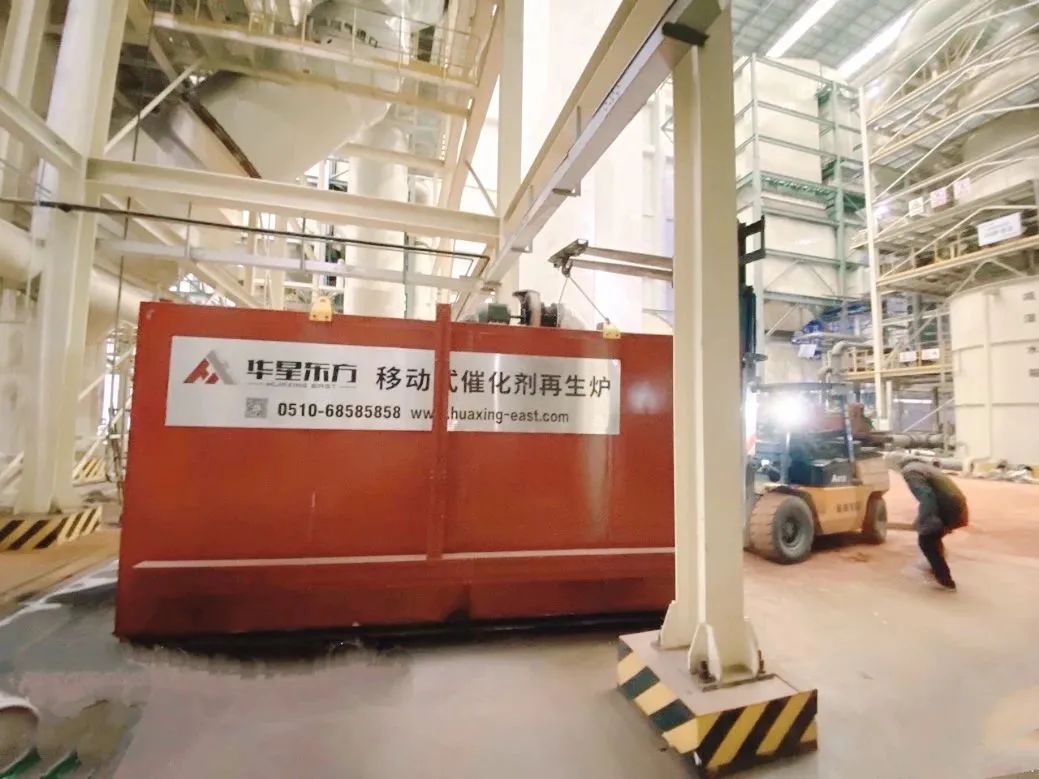

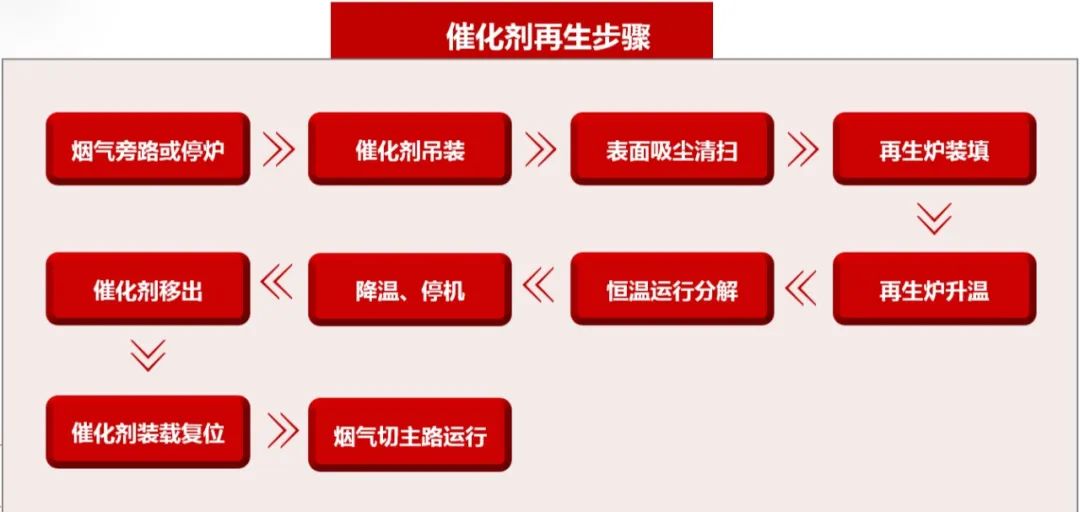

一、再生前工作設備及排氣管道就位
1.Working device and exhaust pipe in place before regeneration

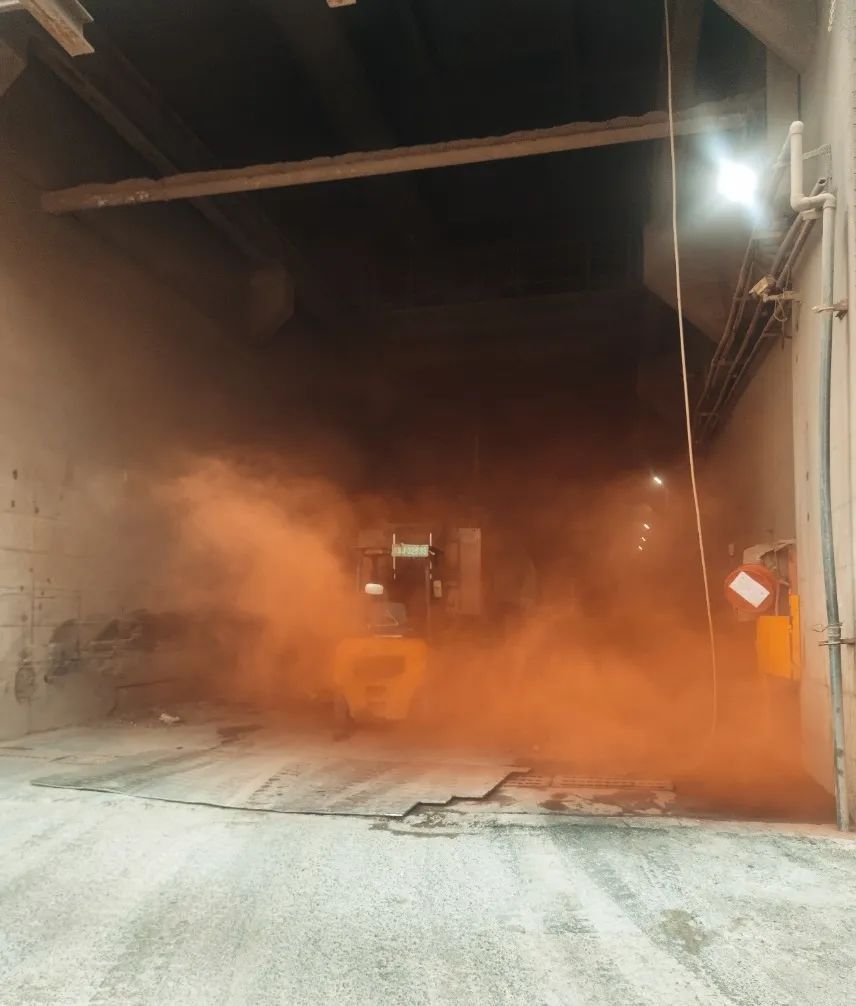

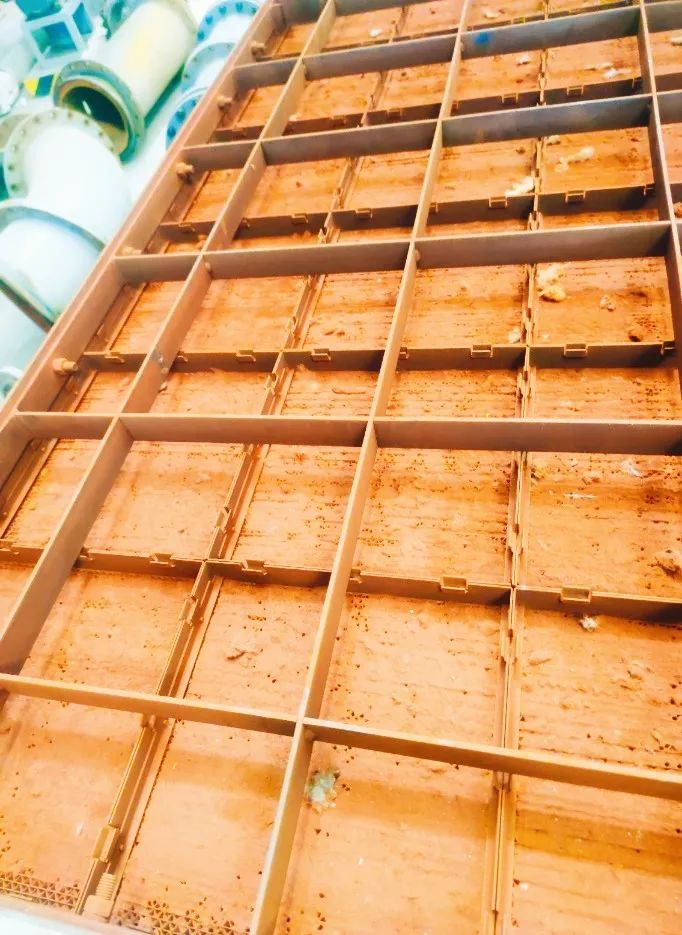

二、催化劑表面清理
2. Surface cleaning of catalyst module

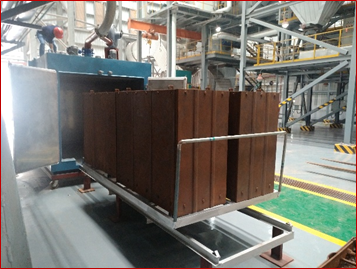

三、催化劑進爐再生
3. Enter the regeneration furnace

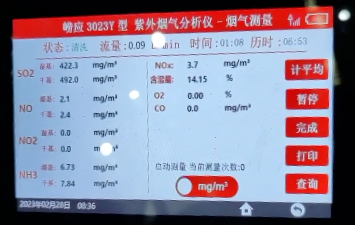

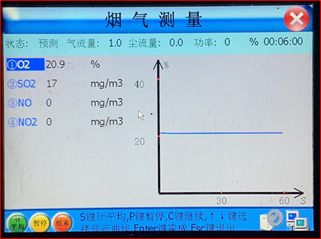

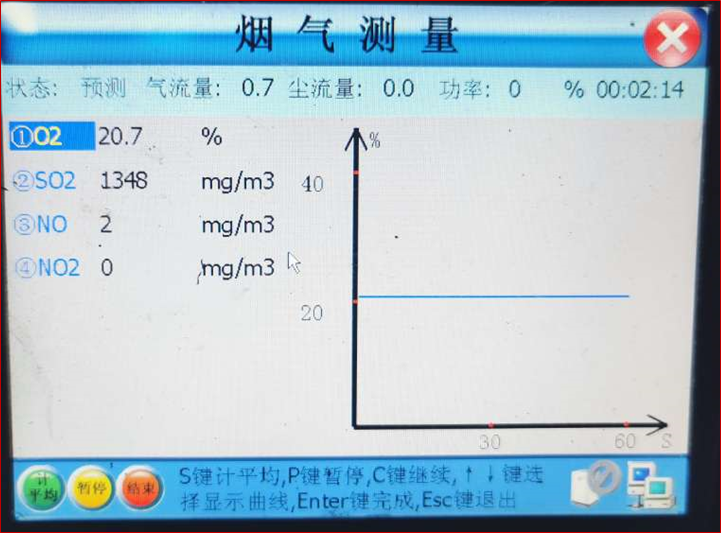

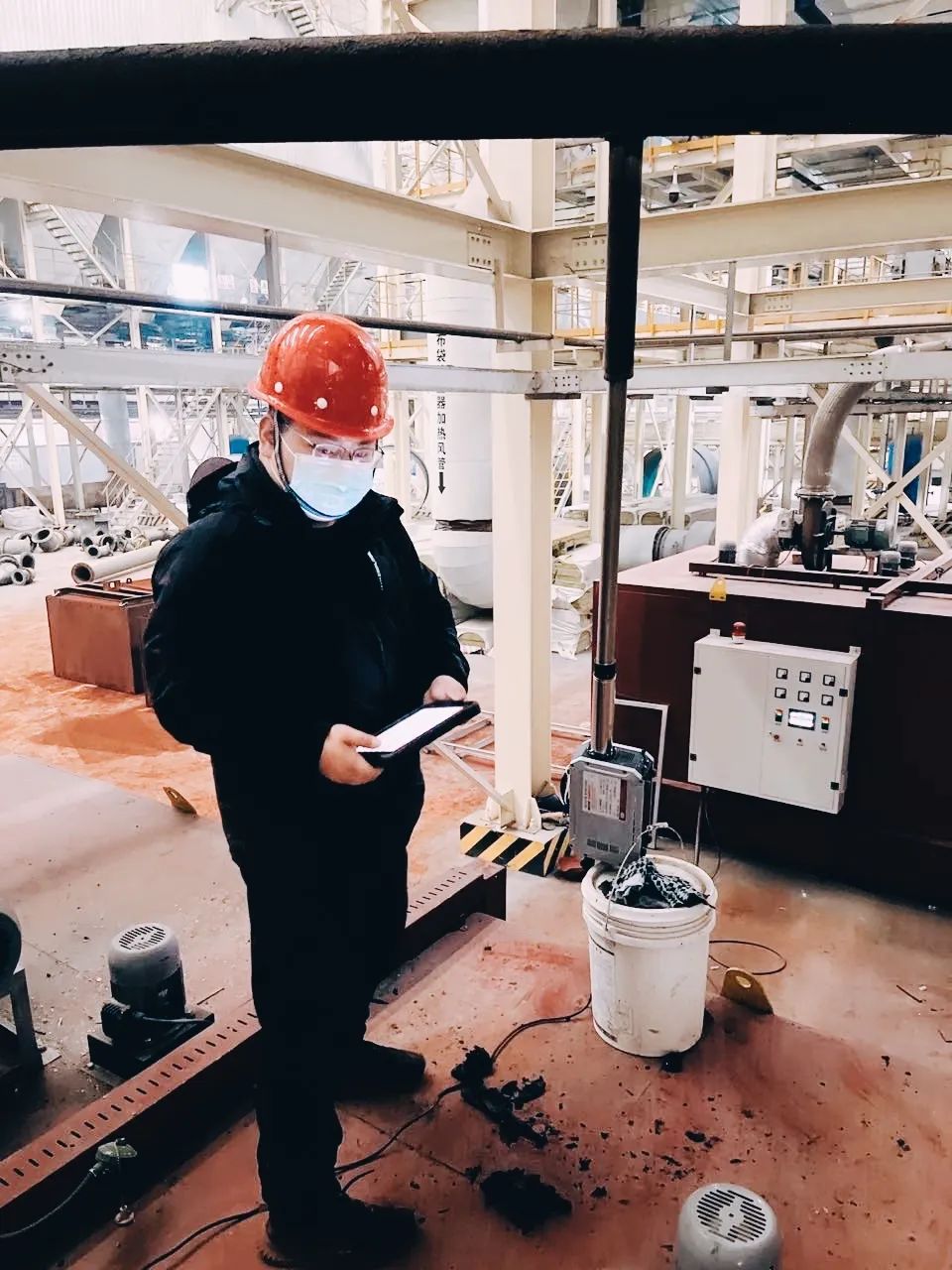

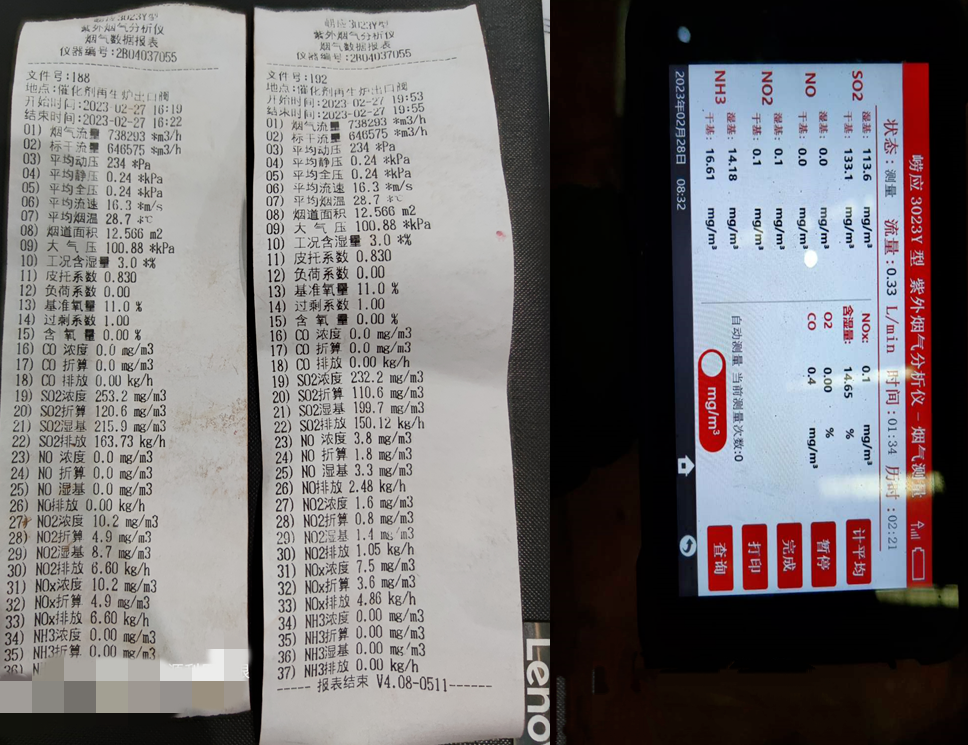

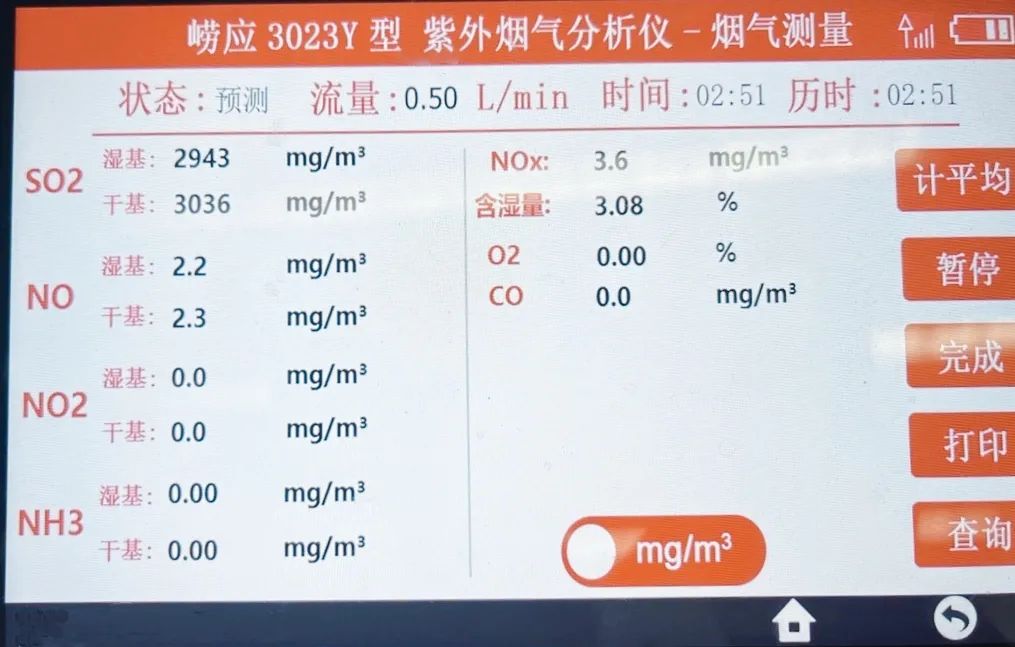

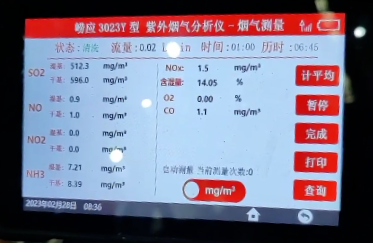

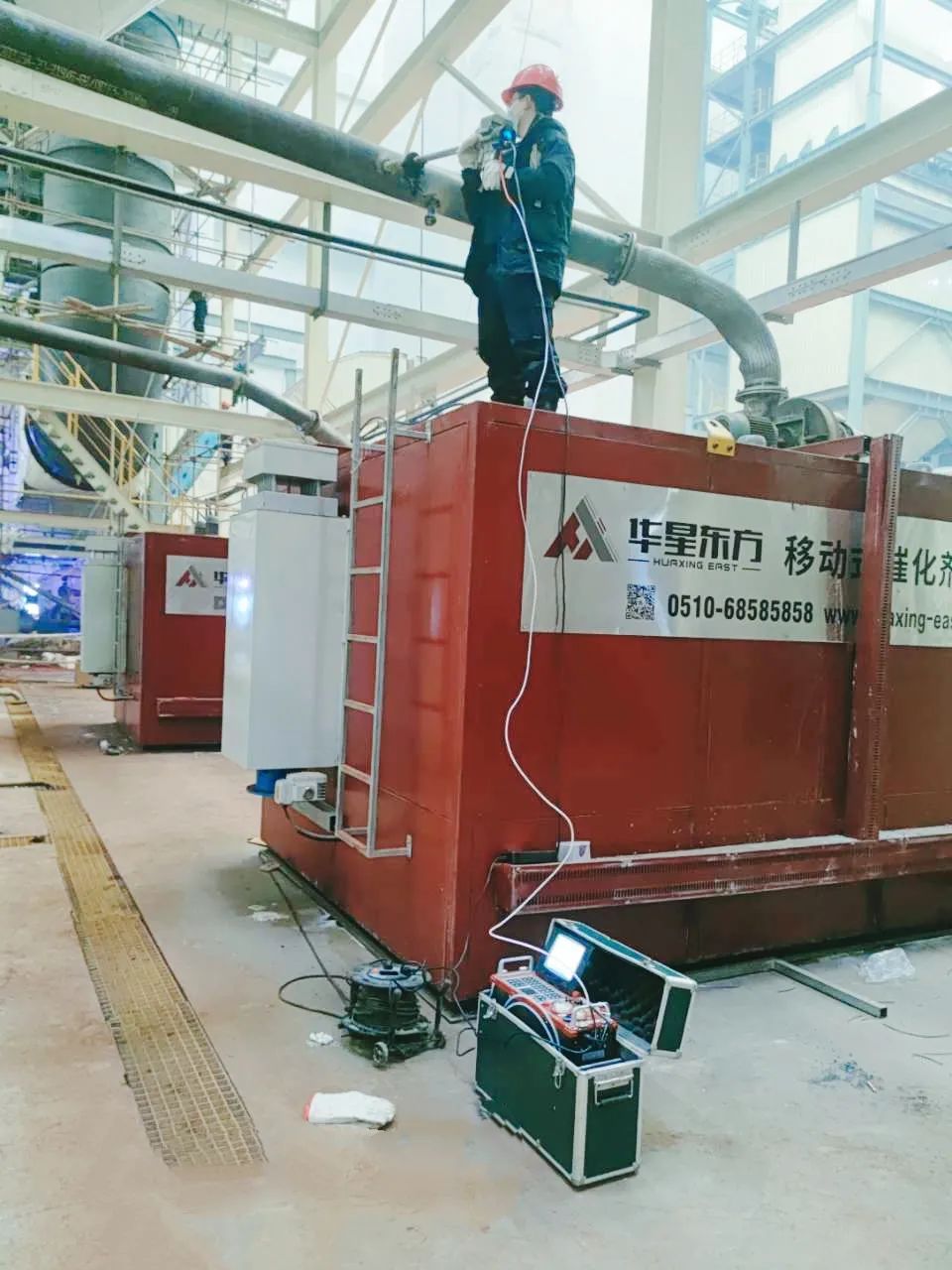

四、再生過程中催化劑排氣檢測
4. Exhaust detection during regeneration

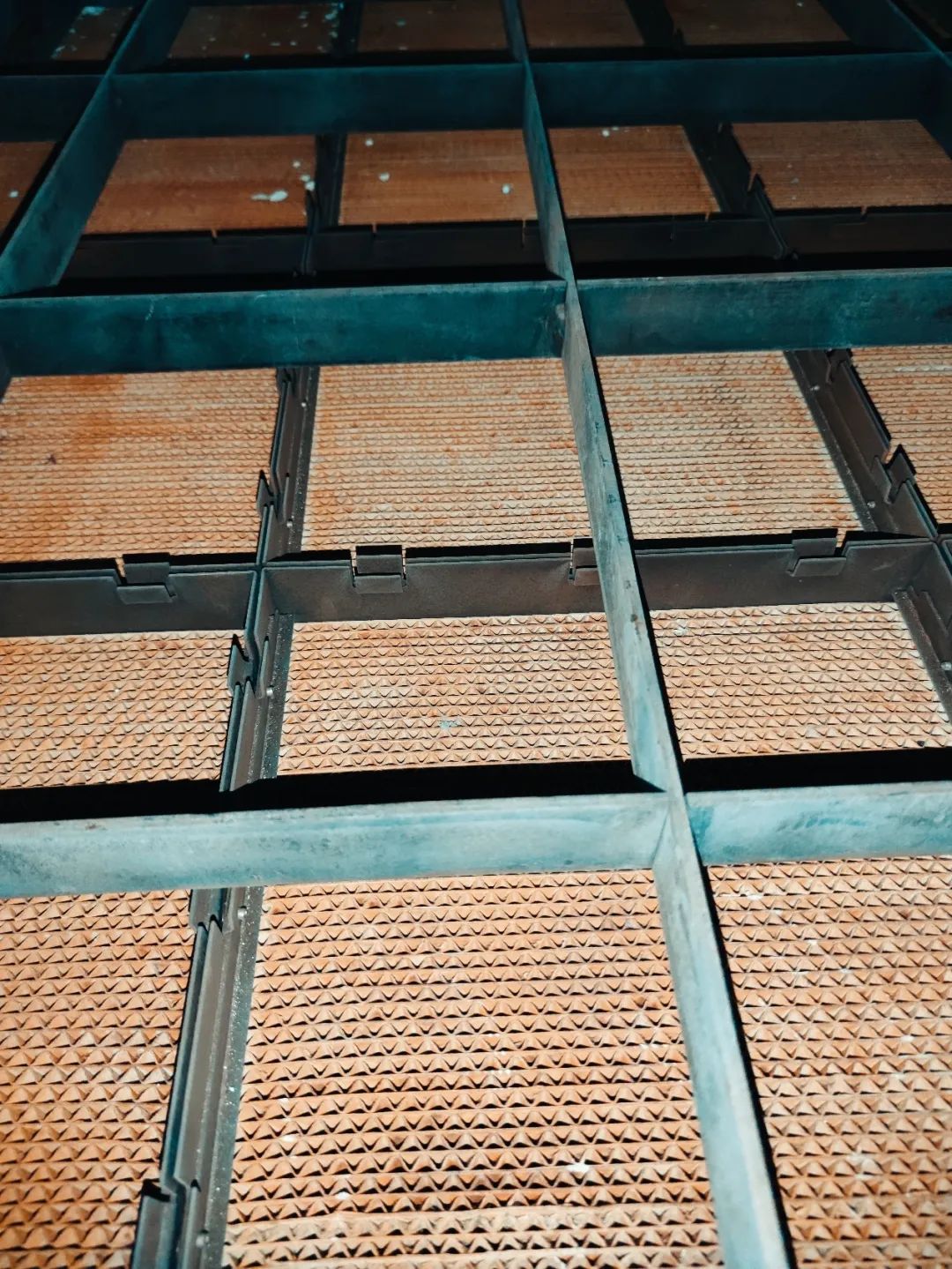

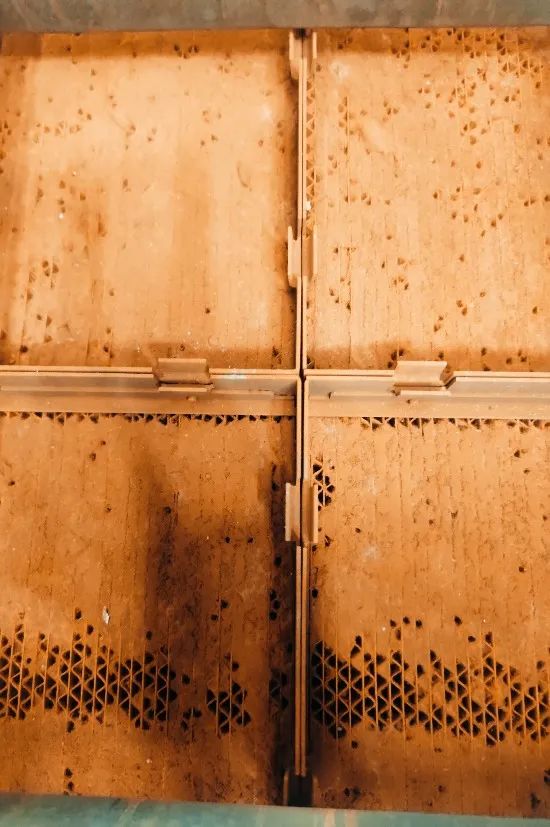

五、催化劑再生完成后催化劑表面
5. Catalyst surface check after regeneration

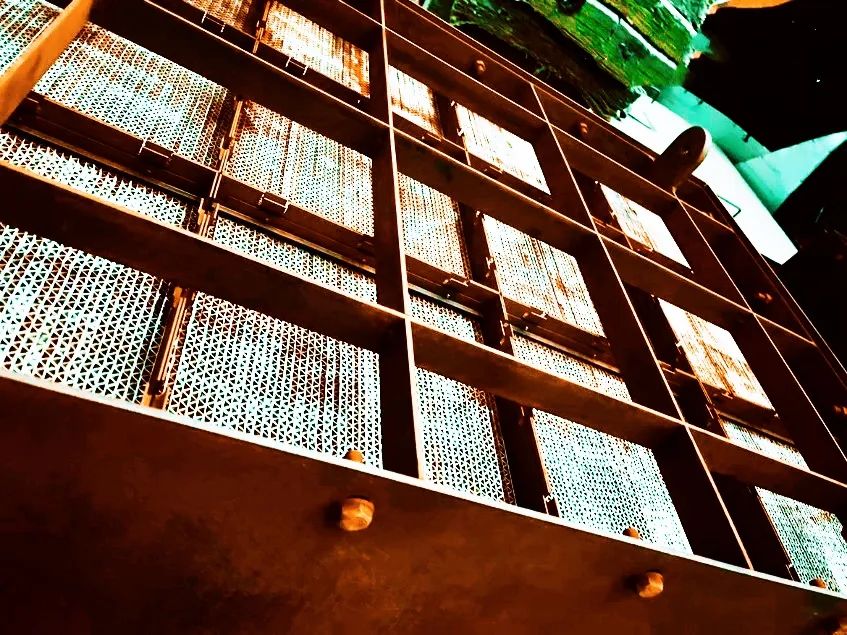

波紋板式催化劑
Corrugated plate catalyst
當催化劑出現化學中毒失效時我公司還可以采用催化劑離線水洗再生工藝。通過對催化劑深度清洗和活性再植入，解決堿金屬、堿土金屬以及重金屬引起的催化劑化學失活，并賦予催化劑短期活性，滿足脫硝工藝需求。
In case of chemical contamination and failure of the catalyst, Huaxing also developed offline water-washing regeneration process. The chemical deactivation of the catalyst caused by alkali metals, alkaline-earth metals and heavy metals can be solved by deep cleaning and active re-implantation, giving catalyst short-term activity to meet the demand of denitration process.

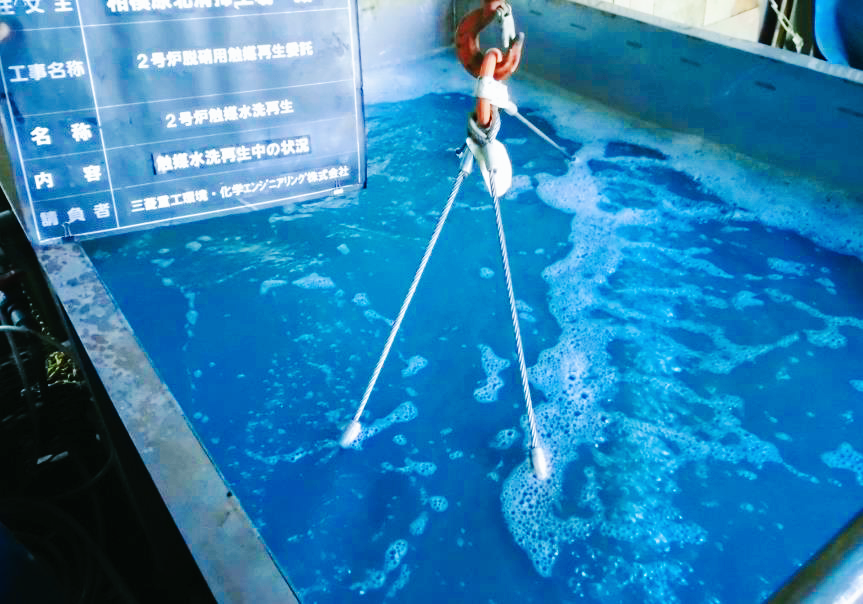

離線水洗
offline water-washing

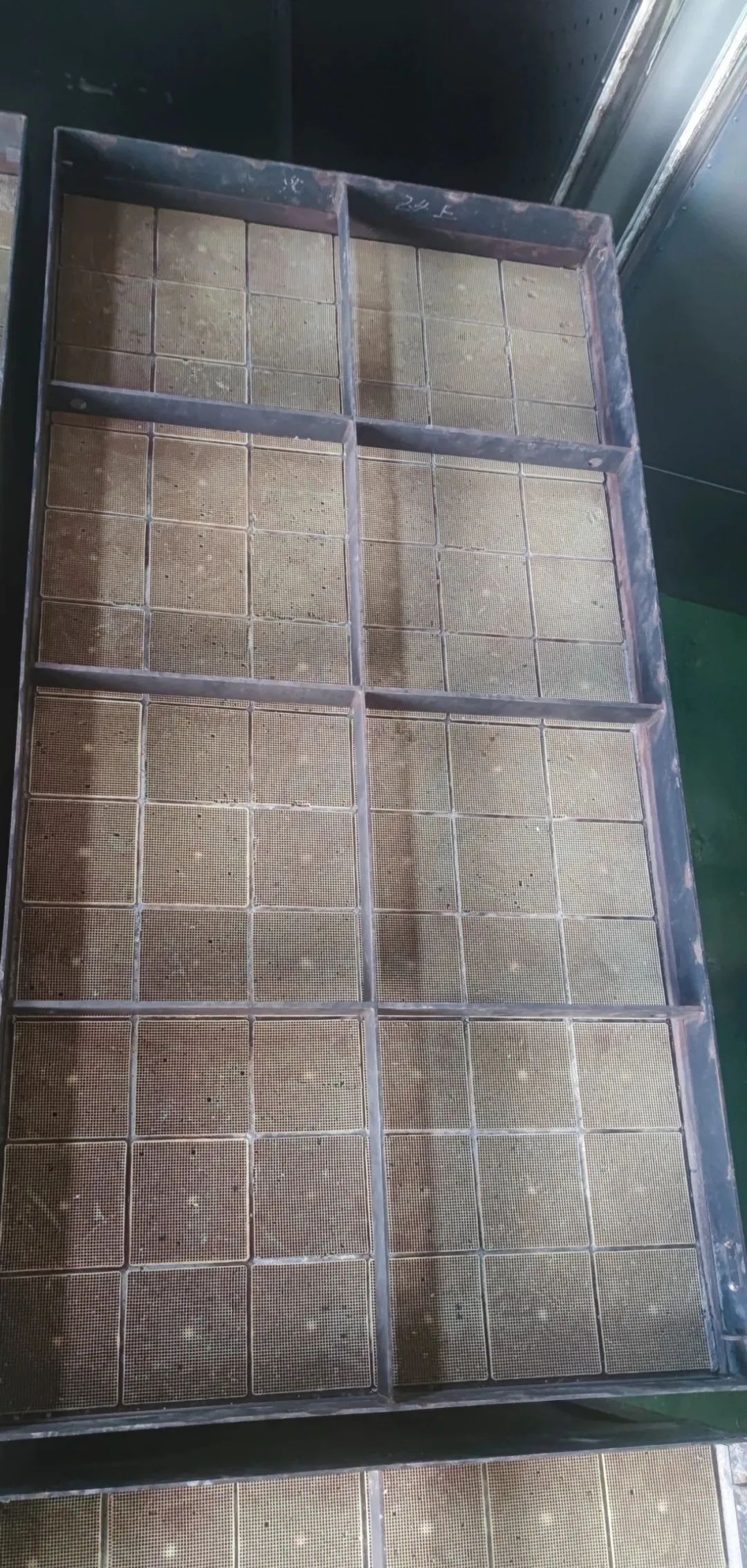

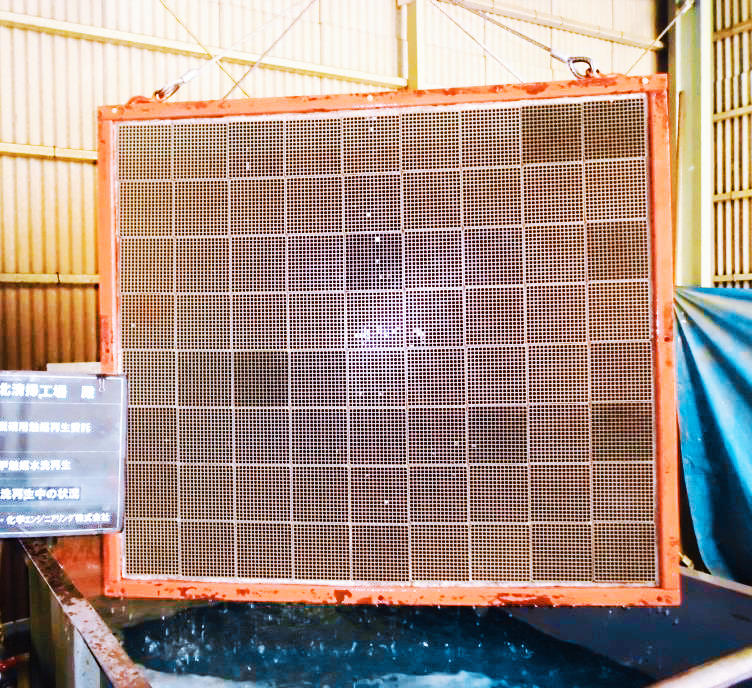

蜂窩式催化劑
Honeycomb catalyst

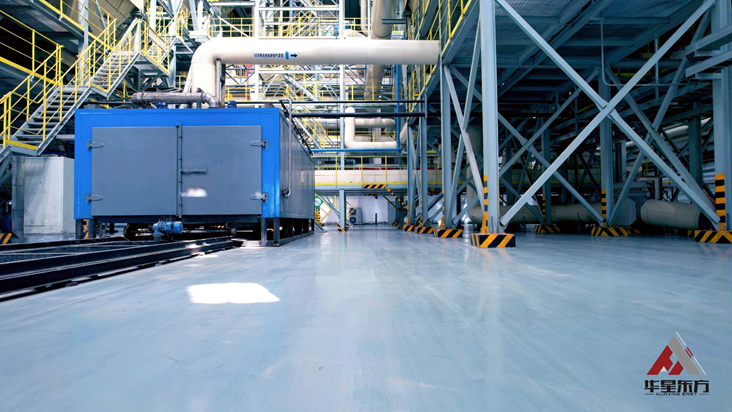

建德浦發生活垃圾焚燒發電項目催化劑離線再生服務
Catalyst offline regeneration service for Jiande Pufa waste incineration power plant
催化劑形式：蜂窩式催化劑
Catalyst type: honeycomb catalyst
催化劑模塊尺寸：1839x925x1350
Catalyst module size: 1839x925x1350mm
最高承受溫度：420℃
Maximum temperature: 420 ℃
2016年華星東方與日本三菱重工達成技術轉讓協議，由三菱重工向華星東方授權轉讓先進的超凈排放煙氣凈化技術。日本三菱重工作為全球領先的垃圾焚燒技術公司，擁有國際領先的煙氣凈化技術，其中單塔雙循環濕式洗滌技術，低溫煙氣脫硝技術，催化劑離線再生等在國際上擁有領先優勢，并具有眾多工程經驗。華星東方先后引進日本三菱重工的濕式洗滌、低溫SCR脫硝及III代低溫脫硝催化劑生產制造技術（中國區域獨占許可）、催化劑離線再生技術（中國區域獨占許可）。主要適用于生活垃圾、危險廢棄物、污泥焚燒等低溫煙氣環境。
In 2016, Huaxing reached a technology transfer agreement with Mitsubishi Heavy Industries (MHI) of Japan, which authorized the transfer of advanced ultra-clean emission technology of flue gas cleaning (FGC) to Huaxing. As a leading company in the field of waste incineration in the world, MHI owns advanced FGC technologies, such as single-tower dual-cycle wet scrubbing, low-temperature flue gas denitration, catalyst offline regeneration, as well as relevant engineering experiences. Huaxing has successively introduced the production and manufacturing technology of MHI's wet scrubbing, low-temperature SCR denitration, third-generation low-temperature denitration catalyst ( Exclusive license in China ), and catalyst offline regeneration ( Exclusive license in China ). These technologies are mainly applicable to flue gas generated by municipal waste, hazardous waste, and sludge incineration.

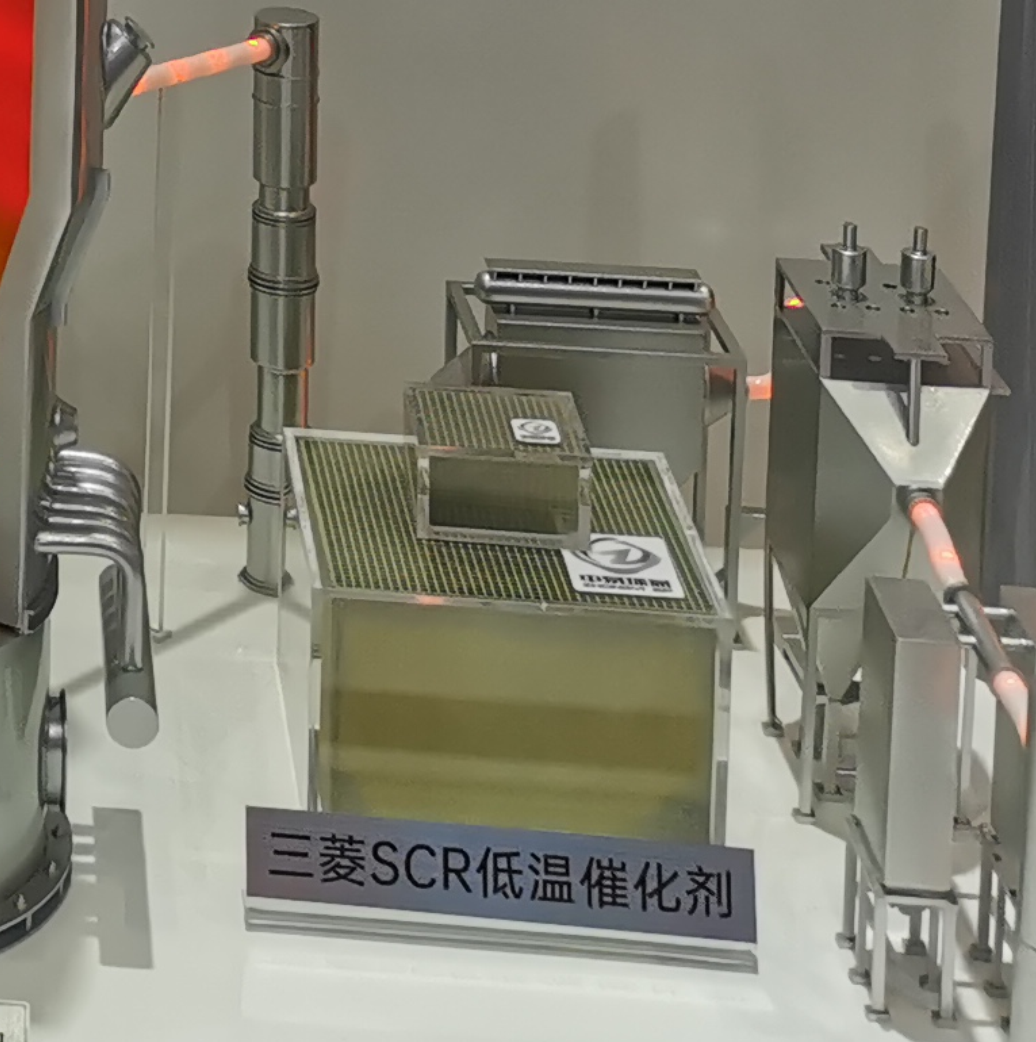

三菱重工的進口催化劑在國內也擁有眾多一線項目的市場業績，如：上海老港二期，深圳東部，北京順義，武漢千子山一期等。江蘇華星東方除了與三菱重工擁有轉化技術的合作外，還作為三菱重工進口催化劑的中國地區獨占代理銷售其進口催化劑。
The catalyst imported from Mitsubishi Heavy Industries also have market references in many leading plants in China, such as Shanghai Laogang Phase II, Shenzhen East, Beijing Shunyi, Wuhan Qianzishan Phase I, etc. In addition to the cooperation with Mitsubishi Heavy Industries in the technology transformation, Huaxing also acts as the exclusive licensee of Mitsubishi Heavy Industries in China to sell the imported catalysts.
三菱重工環境·化學工程株式會社參觀交流
Mitsubishi Heavy Industries Environment · Chemical Engineering Co., Ltd. Visiting and Meeting
江蘇華星東方與三菱重工持續合作研發催化劑
Jiangsu Huaxing-east and Mitsubishi Heavy Industries continue to cooperate in the research and development of catalysts
江蘇華星東方催化劑離線再生系統服務在全國業績涵蓋包括—催化劑離線原位再生系統：濮陽、青島、西安、徐州、臨沂、麗江、宜賓等多個項目。催化劑離線離位再生系統：南京、石首、平陽、宜春、豐城、福州、崇明、海鹽、濟寧、北京、武漢、曹妃甸、建德、安康、石家莊、臺州等多個項目。
Jiangsu Huaxing-east's catalyst offline regeneration system has covered many projects nationwide including Puyang, Qingdao, Xi'an, Xuzhou, Linyi, Lijiang, Yibin, etc. Catalyst offline off-site regeneration system: Nanjing, Shishou, Pingyang, Yichun, Fengcheng, Fuzhou, Chongming, Haiyan, Jining, Beijing, Wuhan, Caofeidian, Jiande, Ankang, Shijiazhuang, Taizhou, etc.
